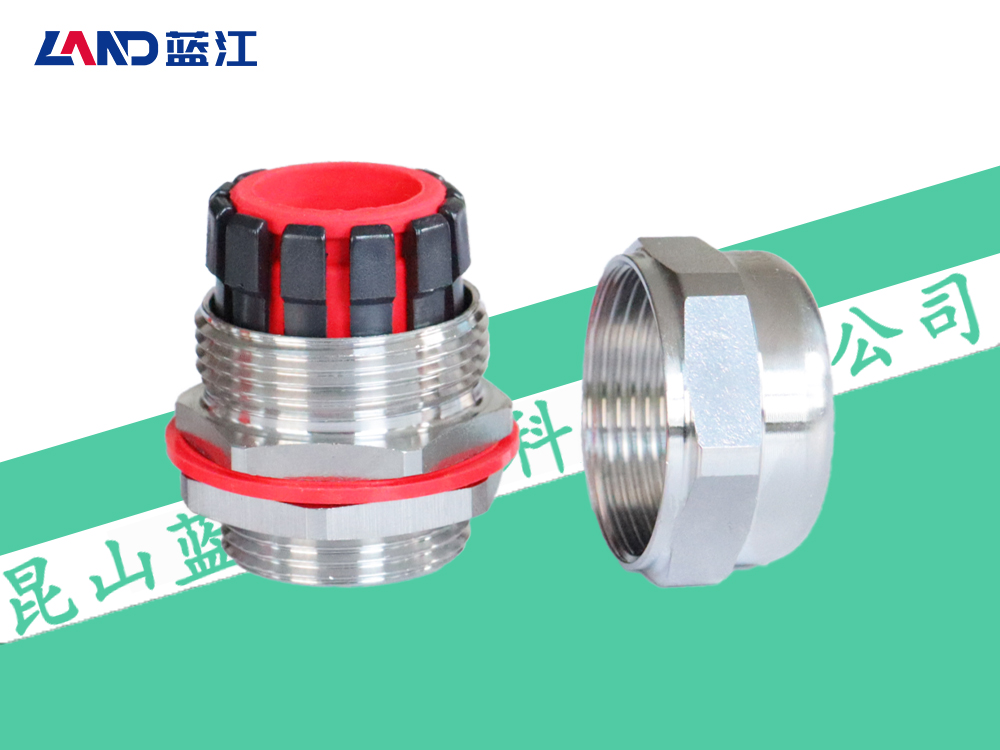

品牌：蓝江/LAND
材料：外壳为304（可选316或316L），密封件为改性橡胶
防水：IP66/IP68
阻燃：UL94V-0
温度：-40°C～105°C，短时可达120°C
性能：外形美观，密封件采用改性V0橡胶制成，具备防火阻燃之特性
产品参数表/M/PG
蓝江产品型号 | 螺纹规格 | 建议开孔 | 电缆范围 | 螺纹长度 | 扳手尺寸 | 包装 |
Product model | Thread size | Hole size | Cable range | Thread length | Wrench Size | packaging |
PN. | Metric | AG φ mm | φ mm | GL mm | nut/cap mm | PCS |
MG12-08-V0-SS | M12×1.5 | 12 | 4～8 | 9 | 15/17 | 50 |
MG16S-08-V0-SS | M16×1.5 | 16 | 4～8 | 9.5 | 20/17 | 50 |
MG16-10-V0-SS | M16×1.5 | 16 | 6～10 | 9.5 | 20/21 | 50 |
MG18-10-V0-SS | M18×1.5 | 18 | 6～10 | 9.5 | 21/21 | 50 |
MG20S-12-V0-SS | M20×1.5 | 20 | 7～12 | 12 | 24/24 | 50 |
MG20-14-V0-SS | M20×1.5 | 20 | 8～14 | 12 | 24/26 | 50 |
MG20-11-V0-SS | M20×1.5 | 20 | 6～11 | 12 | 24/26 | 50 |
MG22-14-V0-SS | M22×1.5 | 22 | 8～14 | 12 | 26/26 | 50 |
MG22-11-V0-SS | M22×1.5 | 22 | 6～11 | 12 | 26/26 | 50 |
MG24-14-V0-SS | M24×1.5 | 24 | 8～14 | 10.5 | 28/26 | 50 |
MG24-11-V0-SS | M24×1.5 | 24 | 6～11 | 10.5 | 28/26 | 50 |
MG25-18-V0-SS | M25×1.5 | 25 | 13～18 | 12 | 30/31 | 50 |
MG25-16-V0-SS | M25×1.5 | 25 | 11～16 | 12 | 30/31 | 50 |
MG27-18-V0-SS | M27×1.5(2) | 27 | 13～18 | 12 | 30/31 | 50 |
MG30-18-V0-SS | M30×1.5(2) | 30 | 13～18 | 12.5 | 34/31 | 50 |
MG32-25-V0-SS | M32×1.5 | 32 | 18～25 | 12.5 | 38/40 | 20 |
MG32-22-V0-SS | M32×1.5 | 32 | 16～22 | 12.5 | 38/40 | 20 |
MG40-31-V0-SS | M40×1.5 | 40 | 25～31 | 14 | 48/50 | 10 |
MG50-41-V0-SS | M50×1.5 | 50 | 33～41 | 15 | 58/60 | 10 |
MG63-54-V0-SS | M63×1.5 | 63 | 46～54 | 15 | 71/76 | 10 |
PG7-08-V0-SS | PG7 | 12.5 | 4～8 | 9 | 15/17 | 50 |
PG9-08-V0-SS | PG9 | 15.2 | 4～8 | 9 | 17/17 | 50 |
PG11-10-V0-SS | PG11 | 18.6 | 6～10 | 9.5 | 21/21 | 50 |
PG13.5-12-V0-SS | PG13.5 | 20.4 | 7～12 | 10.5 | 24/26 | 50 |
PG13.5-14-V0-SS | PG13.5 | 20.4 | 8～14 | 10.5 | 24/26 | 50 |
PG16-14-V0-SS | PG16 | 22.5 | 8～14 | 12 | 26/26 | 50 |
PG16-12-V0-SS | PG16 | 22.5 | 7～12 | 12 | 26/26 | 50 |
PG21-18-V0-SS | PG21 | 28.3 | 13～18 | 12 | 32/31 | 50 |
PG21-16-V0-SS | PG21 | 28.3 | 11～16 | 12 | 32/31 | 50 |
PG29-25-V0-SS | PG29 | 37 | 18～25 | 12.5 | 40/40 | 20 |
PG29-22-V0-SS | PG29 | 37 | 18～25 | 12.5 | 40/40 | 20 |
PG36-31-V0-SS | PG36 | 47 | 25～31 | 15 | 58/50 | 10 |
PG42-41-V0-SS | PG42 | 54 | 33～41 | 15 | 60/60 | 10 |
PG48-54-V0-SS | PG48 | 59.3 | 44～54 | 15 | 71/76 | 10 |
产品参数表/G/NPT
蓝江产品型号 | 螺纹规格 | 建议开孔 | 电缆范围 | 螺纹长度 | 扳手尺寸 | 包装 |
Product model | Thread size | Hole size | Cable range | Thread length | Wrench Size | packaging |
PN. | Metric | AG φ mm | φ mm | GL mm | nut/cap mm | PCS |
G1/4-08-V0-SS | G1/4 | 13.15 | 4～8 | 9 | 17/17 | 50 |
G3/8-10-V0-SS | G3/8 | 16.66 | 6～10 | 9.5 | 21/21 | 50 |
G1/2-14-V0-SS | G1/2 | 20.99 | 8～14 | 12 | 24/26 | 50 |
G1/2-11-V0-SS | G1/2 | 20.99 | 6～11 | 12 | 24/26 | 50 |
G1/2-12-V0-SS | G1/2 | 20.99 | 7～12 | 12 | 24/24 | 50 |
G3/4-18-V0-SS | G3/4 | 26.44 | 13～18 | 12 | 30/31 | 50 |
G3/4-16-V0-SS | G3/4 | 26.44 | 11～16 | 12 | 30/31 | 50 |
G1-25-V0-SS | G1 | 33.25 | 18～25 | 15 | 38/40 | 20 |
G1-22-V0-SS | G1 | 33.25 | 16～22 | 15 | 38/40 | 20 |
G1-1/4-31-V0-SS | G1-1/4 | 41.91 | 25～31 | 15 | 48/50 | 10 |
G1-1/2-31-V0-SS | G1-1/2 | 47.8 | 25～31 | 15 | 55/50 | 10 |
G1-1/2-41-V0-SS | G1-1/2 | 47.8 | 25～31 | 15 | 55/60 | 10 |
G2-54-V0-SS | G2 | 59.61 | 47～54 | 15 | 71/76 | 1 |
NPT1/4-08-V0-SS | NPT1/4 | 13.15 | 4～8 | 9 | 17 | 50 |
NPT3/8-10-V0-SS | NPT3/8 | 17.05 | 6～10 | 10 | 21 | 50 |
NPT1/2-14-V0-SS | NPT1/2 | 21.22 | 8～14 | 13 | 26 | 50 |
NPT1/2-11-V0-SS | NPT1/2 | 21.22 | 6～11 | 13 | 26 | 50 |
NPT1/2-12-V0-SS | NPT1/2 | 21.22 | 7～12 | 13 | 26 | 50 |
NPT3/4-18-V0-SS | NPT3/4 | 26.56 | 13～18 | 13 | 31 | 50 |
NPT3/4-16-V0-SS | NPT3/4 | 26.56 | 11～16 | 13 | 31 | 50 |
NPT1-25-V0-SS | NPT1 | 33.23 | 18～25 | 15 | 40 | 20 |
NPT1-22-V0-SS | NPT1 | 33.23 | 16～22 | 15 | 40 | 20 |
NPT1-1/4-31-V0-SS | NPT1-1/4 | 41.98 | 25～31 | 15 | 50 | 10 |
NPT1-1/2-31-V0-SS | NPT1-1/2 | 48.05 | 25～31 | 15 | 50 | 10 |
NPT1-1/2-31-V0-SS | NPT1-1/2 | 48.05 | 25～31 | 15 | 60 | 10 |
NPT2-54-V0-SS | NPT2 | 60.09 | 44～54 | 15 | 76 | 10 |
