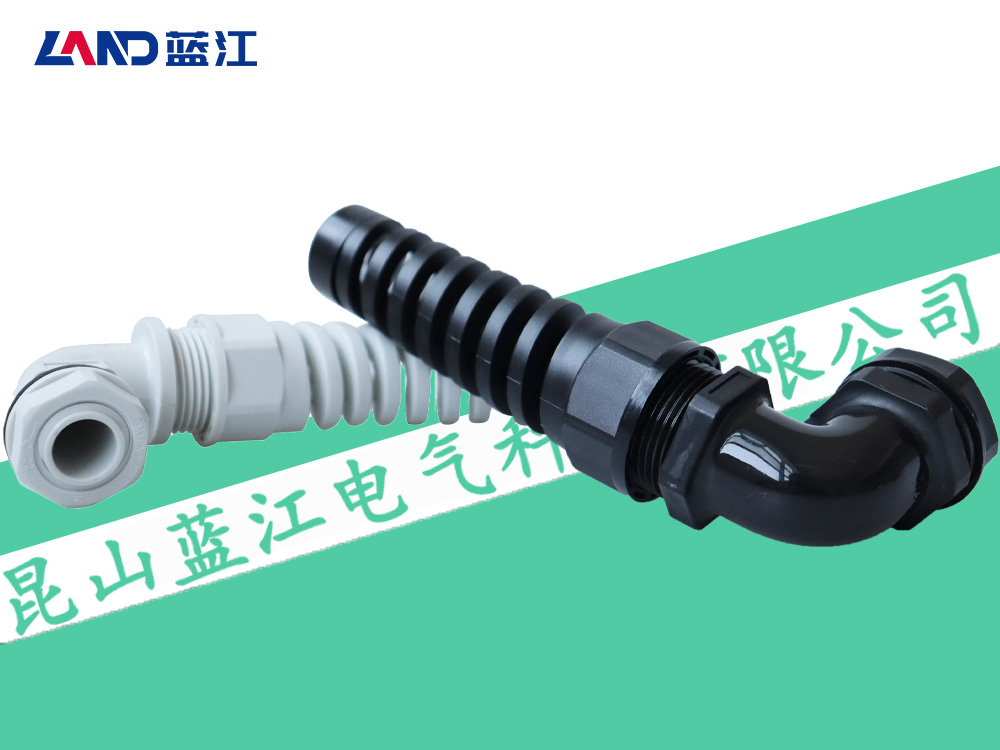

标准90度防折弯头
品牌：蓝江/LAND
材料：外部尼龙，密封件EPDM
颜色：黑色（RAL9005），灰白色（RAL7035）
防水：IP66/IP68
阻燃：UL94V-2
环保：ROHS2.0
温度：-40°C～105°C，短时可达120°C
性能：外形美观，90度标准弯角设计，用于设备电缆弯曲引导保护
产品详情
蓝江产品型号 | 螺纹规格 | 电缆范围 | 螺纹长度 | 主体高度 | 扳手尺寸 | 整袋包装 |
Product model | Thread size | Cable range | Thread length | Body height | Wrench Size | packaging |
PN. | Metric | φ mm | GL mm | H mm | nut/cap mm | PCS |
MG12A-E-P-08 | M12×1.5 | 4～8 | 8 | 28 | 17/16 | 50 |
MG12A-E-P-05 | M12×1.5 | 3～5 | 8 | 28 | 17/16 | 50 |
MG16A-E-P-10 | M16×1.5 | 6～10 | 10 | 38 | 22/22 | 50 |
MG16A-E-P-07 | M16×1.5 | 4～7 | 10 | 38 | 22/22 | 50 |
MG20A-E-P-14 | M20×1.5 | 8～14 | 15 | 50 | 27/27 | 20 |
MG20A-E-P-11 | M20×1.5 | 6～11 | 15 | 50 | 27/27 | 20 |
MG25A-E-P-18 | M25×1.5 | 13～18 | 15 | 57 | 33/33 | 10 |
MG25A-E-P-16 | M25×1.5 | 10～16 | 15 | 57 | 33/33 | 10 |
MG25A-E-P-14 | M25×1.5 | 8～14 | 15 | 57 | 33/33 | 10 |
MG25A-E-P-10 | M25×1.5 | 6～10 | 15 | 57 | 33/33 | 10 |
MG32A-E-P-25 | M32×1.5 | 18～25 | 15 | 66 | 41/41 | 10 |
MG32A-E-P-22 | M32×1.5 | 16～22 | 15 | 66 | 41/41 | 10 |
