品牌：蓝江/LAND
材料：外壳黄铜镀镍，密封圈为改性橡胶
检测：CE，IP68，UL94V-2
温度：-40°C～105°C，短时可达120°C

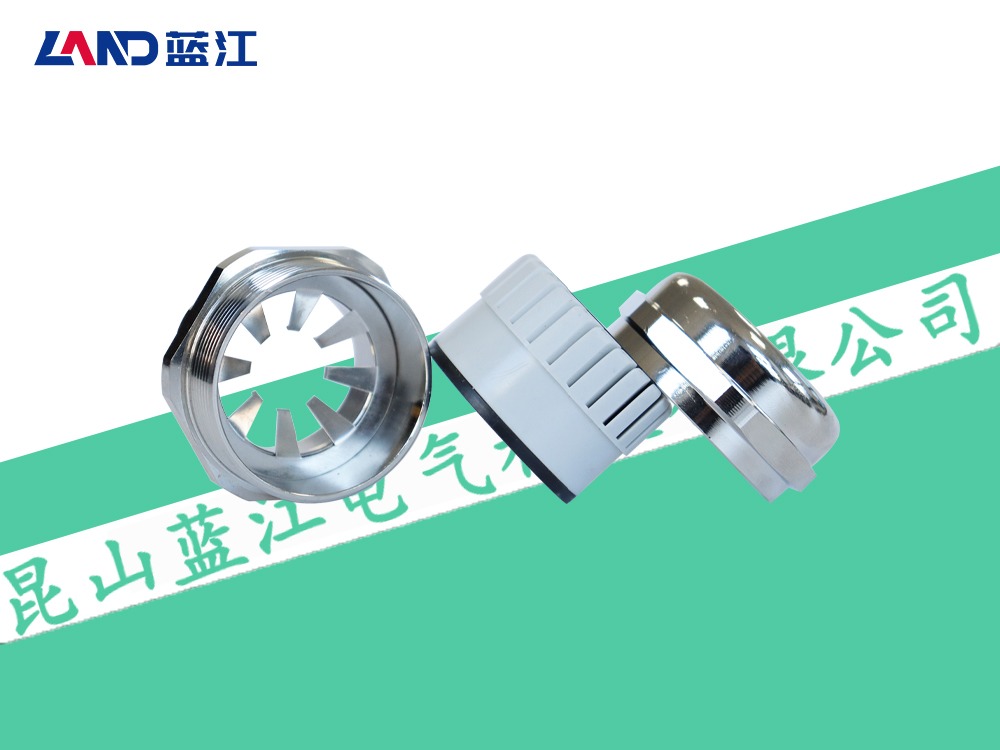

性能：产品外形美观，螺纹精密，多爪防磁片设计，可有效屏蔽电磁干扰
产品参数表/M
蓝江产品型号 | 螺纹规格 | 建议开孔 | 电缆范围 | 螺纹长度 | 扳手尺寸 | 包装 |
Product model | Thread size | Hole size | Cable range | Thread length | Wrench Size | packaging |
PN. | Metric | AG φ mm | φ mm | GL mm | nut/cap mm | PCS |
EMC-MG10B-06 | M10×1.5 | 10 | 3～6.5 | 6 | 14/14 | 100 |
EMC-MG12B-06 | M12×1.5 | 12 | 3～6.5 | 6 | 14/14 | 100 |
EMC-MG12B-08 | M12×1.5 | 14 | 4～8 | 6 | 14/16 | 100 |
EMC-MG14B-08 | M14×1.5 | 14 | 4～8 | 7 | 17/17 | 100 |
EMC-MG16B-08 | M16×1.5 | 16 | 4～8 | 7 | 17/18 | 100 |
EMC-MG16B-10 | M16×1.5 | 16 | 5～10 | 7 | 20/20 | 100 |
EMC-MG18B-10 | M18×1.5 | 18 | 5～10 | 7 | 20/20 | 100 |
EMC-MG20B-08 | M20×1.5 | 20 | 4～8 | 8 | 17/22 | 100 |
EMC-MG20B-10 | M20×1.5 | 20 | 5～10 | 8 | 20/22 | 100 |
EMC-MG20B-12 | M20×1.5 | 20 | 6～12 | 8 | 22/22 | 100 |
EMC-MG20B-14 | M20×1.5 | 20 | 8～14 | 8 | 24/24 | 100 |
EMC-MG22B-14 | M22×1.5 | 22 | 8～14 | 8 | 24/24 | 100 |
EMC-MG24B-14 | M24×1.5 | 24 | 8～14 | 8 | 24/27 | 100 |
EMC-MG25B-14 | M25×1.5 | 25 | 8～14 | 8 | 24/27 | 50 |
EMC-MG25B-16 | M25×1.5 | 25 | 10～16 | 8 | 27/27 | 50 |
EMC-MG25B-18 | M25×1.5 | 25 | 13～18 | 8 | 30/30 | 50 |
EMC-MG27B-18 | M27×2.0 | 27 | 13～18 | 8 | 30/30 | 50 |
EMC-MG30B-18 | M30×2.0 | 30 | 13～18 | 8 | 30/32 | 50 |
EMC-MG30B-20 | M30×2.0 | 30 | 15～20 | 8 | 30/32 | 50 |
EMC-MG32B-18 | M32×1.5 | 32 | 13～18 | 9 | 34 | 50 |
EMC-MG32B-22 | M32×1.5 | 32 | 15～22 | 9 | 34/34 | 50 |
EMC-MG32B-25 | M32×1.5 | 32 | 18～25 | 9 | 40/40 | 50 |
EMC-MG33B-22 | M33×2.0 | 33 | 15～22 | 9 | 34/36 | 50 |
EMC-MG36B-25 | M36×2.0 | 36 | 18～25 | 9 | 40/40 | 50 |
EMC-MG40B-25 | M40×1.5 | 40 | 18～25 | 9 | 40/43 | 20 |
EMC-MG40B-28 | M40×1.5 | 40 | 20～28 | 10 | 43/43 | 20 |
EMC-MG40B-30 | M40×1.5 | 40 | 22～30 | 10 | 45/45 | 20 |
EMC-MG40B-32 | M40×1.5 | 40 | 24～32 | 10 | 50/50 | 20 |
EMC-MG42B-28 | M42×2.0 | 42 | 20～28 | 10 | 50/50 | 20 |
EMC-MG48B-32 | M48×2.0 | 48 | 24～32 | 10 | 50/52 | 20 |
EMC-MG50B-32 | M50×1.5 | 50 | 24～32 | 10 | 57/55 | 10 |
EMC-MG50B-38 | M50×1.5 | 50 | 30～38 | 10 | 57/55 | 10 |
EMC-MG60B-44 | M60×2.0 | 60 | 37～44 | 12 | 64/64 | 10 |
EMC-MG63B-44 | M63×1.5 | 63 | 37～44 | 12 | 64/68 | 10 |
EMC-MG64B-44 | M64×2.0 | 64 | 37～44 | 12 | 64/68 | 10 |
产品参数表/PG/G(PF)/NPT
蓝江产品型号 | 螺纹规格 | 建议开孔 | 电缆范围 | 螺纹长度 | 扳手尺寸 | 包装 |
Product model | Thread size | Hole size | Cable range | Thread length | Wrench Size | packaging |
PN. | Metric | AG φ mm | φ mm | GL mm | nut/cap mm | PCS |
EMC-PG7B-06 | PG7 | 12.5 | 3～6.5 | 6 | 14/14 | 100 |
EMC-PG7B-08 | PG7 | 12.5 | 4～8 | 7 | 14/14 | 100 |
EMC-PG9B-08 | PG9 | 15.2 | 4～8 | 7 | 17/17 | 100 |
EMC-PG11B-10 | PG11 | 18.6 | 5～10 | 7 | 20/20 | 100 |
EMC-PG13.5B-12 | PG13.5 | 20.4 | 6～12 | 7 | 22/22 | 100 |
EMC-PG16B-14 | PG16 | 22.5 | 8～14 | 8 | 24/24 | 100 |
EMC-PG19B-14 | PG19 | 23.8 | 8～14 | 8 | 24/27 | 100 |
EMC-PG21B-18 | PG21 | 28.3 | 13～18 | 8 | 30/30 | 50 |
EMC-PG25B-22 | PG25 | 30 | 16～22 | 8 | 30/32 | 50 |
EMC-PG29B-25 | PG29 | 37 | 18～25 | 9 | 40/40 | 20 |
EMC-PG36B-32 | PG36 | 47 | 24～32 | 10 | 50/50 | 20 |
EMC-PG42B-38 | PG42 | 54 | 30～38 | 10 | 58/58 | 10 |
EMC-PG48B-44 | PG48 | 59.3 | 37～44 | 12 | 64/64 | 10 |
EMC-G1/4B-06 | G1/4 | 13.15 | 3～6.5 | 6 | 14/16 | 100 |
EMC-G1/4B-08 | G1/4 | 13.15 | 4～8 | 6 | 14/16 | 100 |
EMC-G3/8B-08 | G3/8 | 16.65 | 4～8 | 7 | 17/18 | 100 |
EMC-G1/2B-12 | G1/2 | 20.95 | 6～12 | 8 | 22/22 | 100 |
EMC-G3/4B-18 | G3/4 | 26.44 | 13～18 | 8 | 30/30 | 100 |
EMC-G1B-22 | G1 | 33.24 | 16～22 | 9 | 34/36 | 20 |
EMC-G1-1/4B-28 | G1-1/4 | 41.91 | 22～28 | 10 | 43/45 | 20 |
EMC-G1-1/4B-30 | G1-1/4 | 41.91 | 23～30 | 10 | 45/45 | 20 |
EMC-G1-1/2B-32 | G1-1/2 | 47.80 | 25～32 | 10 | 50/52 | 10 |
EMC-G2B-44 | G2 | 59.61 | 37～44 | 12 | 64/64 | 10 |
EMC-NPT1/4B-06 | NPT1/4 | 13.15 | 3～6.5 | 6 | 14/16 | 100 |
EMC-NPT1/4B-08 | NPT1/4 | 13.15 | 4～8 | 6 | 14/16 | 100 |
EMC-NPT3/8B-08 | NPT3/8 | 16.65 | 4～8 | 7 | 17/18 | 100 |
EMC-NPT1/2B-12 | NPT1/2 | 20.95 | 6～12 | 8 | 22/22 | 100 |
EMC-NPT3/4B-18 | NPT3/4 | 26.44 | 13～18 | 8 | 30/30 | 50 |
EMC-NPT1B-22 | NPT1 | 33.24 | 16～22 | 9 | 34/36 | 20 |
EMC-NPT1-1/4B-28 | NPT1-1/4 | 41.91 | 22～28 | 10 | 43/45 | 20 |
EMC-NPT1-1/4B-30 | NPT1-1/4 | 41.91 | 23～30 | 10 | 45/45 | 20 |
EMC-NPT1-1/2B-32 | NPT1-1/2 | 47.80 | 25～32 | 10 | 50/52 | 10 |
EMC-NPT2B-44 | NPT2 | 59.61 | 37～44 | 12 | 64/64 | 10 |
