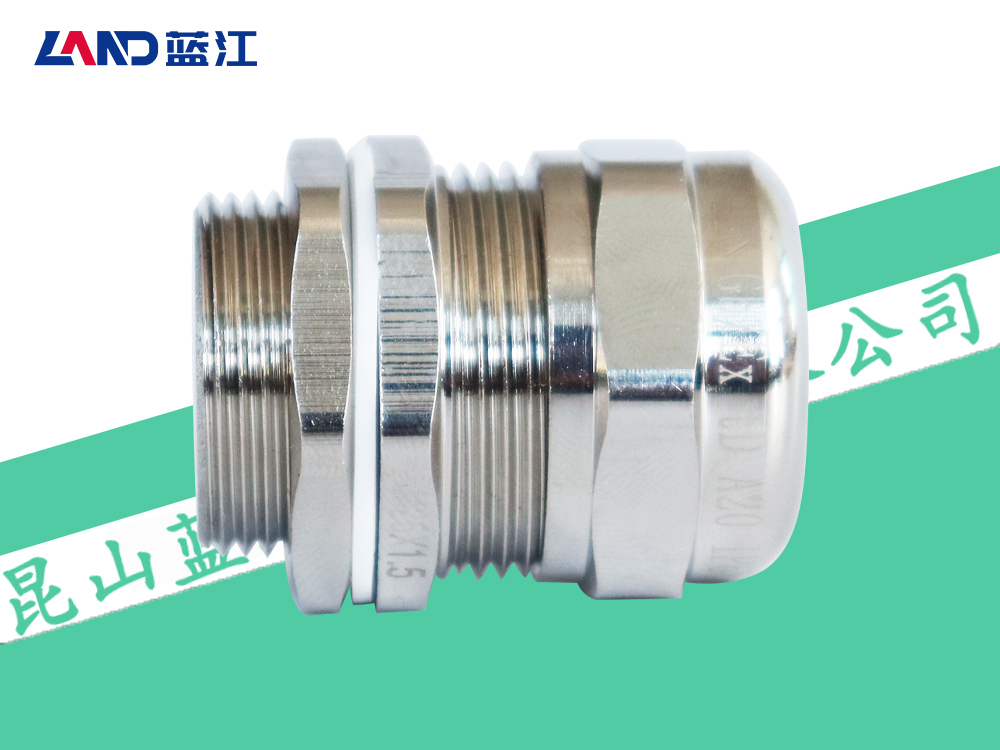

品牌：蓝江/LAND
材料：外壳为黄铜镀镍，密封件为硅胶
防水：IP68
温度：-20°C～150°C，短时可达200°C
性能：外形美观，螺纹精密，采用分体式硅胶密封圈耐高温设计，可持续在高温环境下工作而保持气密性
产品参数表/G(PF)/NPT
蓝江产品型号 | 螺纹规格 | 建议开孔 | 电缆范围 | 螺纹长度 | 扳手尺寸 | 包装 |
Product model | M Thread | Hole size | Cable range | Thread length | Wrench Size | packaging |
PN. | M | AG φ mm | φ mm | GL mm | nut/cap mm | PCS |
MG12A-08-HT | M12×1.5 | 12 | 4～8 | 8 | 17/17 | 50 |
MG16A-08-HT | M16×1.5 | 16 | 4～8 | 8 | 18/18 | 50 |
MG16A-10-HT | M16×1.5 | 16 | 6～10 | 9 | 22/22 | 50 |
MG20A-14-HT | M20×1.5 | 20 | 8～14 | 10 | 26/26 | 50 |
MG20A-12-HT | M20×1.5 | 20 | 7～12 | 10 | 26/26 | 50 |
MG25A-18-HT | M25×1.5 | 25 | 13～18 | 12 | 32/32 | 50 |
MG25A-16-HT | M25×1.5 | 25 | 11～16 | 12 | 32/32 | 50 |
MG32A-25-HT | M32×1.5 | 32 | 18～25 | 12.5 | 40/40 | 20 |
MG32A-22-HT | M32×1.5 | 32 | 16～22 | 12.5 | 40/40 | 20 |
MG40A-30-HT | M40×1.5 | 40 | 24～30 | 15 | 50/50 | 10 |
MG50A-40-HT | M50×1.5 | 50 | 33～40 | 15 | 59/59 | 10 |
MG63A-45-HT | M63×1.5 | 63 | 38～45 | 15 | 68/68 | 10 |
PG7A-08-HT | PG7 | 12.5 | 4～8 | 8 | 17/17 | 50 |
PG9A-08-HT | PG9 | 15.2 | 4～8 | 8 | 18/18 | 50 |
PG11A-10-HT | PG11 | 18.6 | 6～10 | 9 | 22/22 | 50 |
PG13.5A-12-HT | PG13.5 | 20.5 | 7～12 | 10 | 24/24 | 50 |
PG16A-14-HT | PG16 | 22.5 | 8～14 | 10 | 26/26 | 50 |
PG16A-12-HT | PG16 | 22.5 | 7～12 | 10 | 26/26 | 50 |
PG21A-18-HT | PG21 | 28.3 | 13～18 | 12 | 32/32 | 50 |
PG21A-16-HT | PG21 | 28.3 | 11～16 | 12 | 32/32 | 50 |
PG29A-25-HT | PG29 | 37 | 18～25 | 12.5 | 40/40 | 20 |
PG29A-22-HT | PG29 | 37 | 16～22 | 12.5 | 40/40 | 20 |
PG36A-30-HT | PG36 | 47 | 24～30 | 15 | 50/50 | 10 |
PG42A-40-HT | PG42 | 54 | 33～40 | 15 | 59/59 | 10 |
PG48A-45-HT | PG48 | 59.3 | 38～45 | 15 | 68/68 | 10 |
产品参数表/G(PF)/NPT
蓝江产品型号 | 螺纹规格 | 建议开孔 | 电缆范围 | 螺纹长度 | 扳手尺寸 | 包装 |
Product model | M Thread | Hole size | Cable range | Thread length | Wrench Size | packaging |
PN. | M | AG φ mm | φ mm | GL mm | nut/cap mm | PCS |
G1/4A-08-HT | G1/4 | 13.15 | 4～8 | 8 | 17/17 | 50 |
G3/8A-10-HT | G3/8 | 16.65 | 6～10 | 9 | 22/22 | 50 |
G1/2A-12-HT | G1/2 | 20.95 | 7～12 | 9.5 | 26/26 | 50 |
G1/2A-14-HT | G1/2 | 20.95 | 8～14 | 10 | 26/26 | 50 |
G3/4A-18-HT | G3/4 | 26.44 | 13～18 | 12 | 32/32 | 50 |
G3/4A-16-HT | G3/4 | 26.44 | 11～16 | 12 | 32/32 | 50 |
G1A-25-HT | G1 | 33.24 | 18～25 | 12.5 | 40/40 | 20 |
G1A-22-HT | G1 | 33.24 | 18～25 | 12.5 | 40/40 | 20 |
G1-1/4A-30-HT | G1-1/4 | 41.91 | 24～30 | 15 | 50/50 | 10 |
G1-1/2A-40-HT | G1-1/2 | 47.8 | 33～40 | 15 | 59/59 | 10 |
G2A-45-HT | G2 | 59.61 | 38～45 | 15 | 68/68 | 10 |
NPT1/4A-08-HT | NPT1/4 | 13.15 | 4～8 | 8 | 17/17 | 50 |
NPT3/8A-10-HT | NPT3/8 | 16.65 | 6～10 | 9 | 22/22 | 50 |
NPT1/2A-12-HT | NPT1/2 | 20.95 | 7～12 | 9.5 | 26/26 | 50 |
NPT1/2A-14-HT | NPT1/2 | 20.95 | 8～14 | 10 | 26/26 | 50 |
NPT3/4A-18-HT | NPT3/4 | 26.44 | 13～18 | 12 | 32/32 | 50 |
NPT3/4A-16-HT | NPT3/4 | 26.44 | 11～16 | 12 | 32/32 | 50 |
NPT1A-25-HT | NPT1 | 33.24 | 18～25 | 12.5 | 40/40 | 20 |
NPT1A-22-HT | NPT1 | 33.24 | 16～22 | 12.5 | 40/40 | 20 |
NPT1-1/4A-30-HT | NPT1-1/4 | 41.91 | 24～30 | 15 | 50/50 | 10 |
NPT1-1/2A-40-HT | NPT1-1/2 | 47.8 | 33～40 | 15 | 59/59 | 10 |
NPT2A-45-HT | NPT2 | 59.61 | 38～45 | 15 | 68/68 | 10 |
