品牌：蓝江/LAND

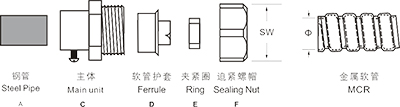

材料：C.D.F为不锈钢，E为硅胶
连接：三柱螺丝紧固
防护：IP68
温度：-40°C至100°C
特性：304或316不锈钢制成，外形美观，结构紧密，强度高
英制直径产品尺寸表
蓝江产品型号 | 适配软管 | 厚钢管 | 外径/壁厚 | 薄钢管 | 外径×壁厚 | 包装 |
Product model | Adapt hose | Thick steel pipe | external diameter/wall thickness | Thin steel tube | external diameter/wall thickness | quantity |
PN. | φ mm | Pcs/bag | ||||
DKJ-G3/8-12-SS | φ12 | #12 | 17×2.25 | #15 | 15.87×1.6 | 50 |
DKJ-G1/2-15-SS | φ15 | #15 | 21.25×2.75 | #20 | 19.05×1.6 | 50 |
DKJ-G3/4-20-SS | φ20 | #20 | 26.75×2.75 | #25 | 25.4×1.8 | 50 |
DKJ-G1-25-SS | φ25 | #25 | 33.5×3.35 | #32 | 31.75×1.8 | 20 |
DKJ-G1-1/4-32-SS | φ32 | #32 | 42.25×3.25 | #40 | 38.1×1.8 | 10 |
DKJ-G1-1/2-38-SS | φ38 | #40 | 48×3.35 | #50 | 50.8×1.8 | 10 |
DKJ-G2-51-SS | φ51 | #50 | 60×3.5 | #70 | 63.5×2.5 | 10 |
DKJ-G2-1/2-64-SS | φ64 | #70 | 75.5×3.75 | #80 | 76.2×3.2 | 5 |
公称直径产品尺寸表
蓝江产品型号 | 适配软管 | 厚钢管 | 外径/壁厚 | 薄钢管 | 外径×壁厚 | 包装 |
Product model | Adapt hose | Thick steel pipe | external diameter/wall thickness | Thin steel tube | external diameter/wall thickness | quantity |
PN. | φ mm | Pcs/bag | ||||
DKJ-G3/8-12-SS | 3/8" | 3/8" | 17×2.25 | 1/2" | 15.87×1.6 | 50 |
DKJ-G1/2-15-SS | 1/2" | 1/2" | 21.25×2.75 | 3/4" | 19.05×1.6 | 50 |
DKJ-G3/4-20-SS | 3/4" | 3/4" | 26.75×2.75 | 1" | 25.4×1.8 | 50 |
DKJ-G1-25-SS | 1" | 1" | 33.5×3.35 | 1-1/4" | 31.75×1.8 | 20 |
DKJ-G1-1/4-32-SS | 1-1/4" | 1-1/4" | 42.25×3.25 | 1-1/2" | 38.1×1.8 | 10 |
DKJ-G1-1/2-38-SS | 1-1/2" | 1-1/2" | 48×3.35 | 2" | 50.8×1.8 | 10 |
DKJ-G2-51-SS | 2" | 2" | 60×3.5 | 2-1/2" | 63.5×2.5 | 10 |
DKJ-G2-1/2-64-SS | 2-1/2" | 2-1/2" | 75.5×3.75 | 3" | 76.2×3.2 | 5 |
