品牌：蓝江/LAND
材料：304，可选316或316L
防水：IP68
防爆：Ex db IIC Gb/Ex eb IIC Gb/Ex tb IIIC Db
特性：外形美观，螺纹精密，用于设备预留孔堵塞密封

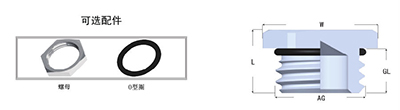

产品参数表/M
蓝江产品型号 | 螺纹规格 | 产品尺寸/Product size | 包装 | ||
Product model | Thread size | AG | GL | W | packing |
PN. | M/PG/G/NPT | φ mm | φ mm | φ mm | Pcs/bag |
Exd-GL-M12-SS | M12×1.5 | 12 | 11 | 14 | 100 |
Exd-GL-M14-SS | M14×1.5 | 14 | 11 | 18 | 100 |
Exd-GL-M16-SS | M16×1.5 | 16 | 11 | 20 | 100 |
Exd-GL-M18-SS | M18×1.5 | 18 | 11 | 22 | 100 |
Exd-GL-M20-SS | M20×1.5 | 20 | 12 | 24 | 50 |
Exd-GL-M22-SS | M22×1.5 | 22 | 12 | 26 | 50 |
Exd-GL-M24-SS | M24×1.5 | 24 | 12 | 28 | 50 |
Exd-GL-M25-SS | M25×1.5 | 25 | 14 | 30 | 50 |
Exd-GL-M27-SS | M27×1.5 | 27 | 14 | 32 | 50 |
Exd-GL-M27-SS | M27×2.0 | 27 | 14 | 32 | 50 |
Exd-GL-M30-SS | M30×1.5 | 30 | 14 | 34 | 50 |
Exd-GL-M30-SS | M30×2.0 | 30 | 14 | 34 | 50 |
Exd-GL-M32-SS | M32×1.5 | 32 | 14 | 38 | 50 |
Exd-GL-M33-SS | M33×2.0 | 32 | 14 | 38 | 50 |
Exd-GL-M36-SS | M36×1.5 | 36 | 14 | 42 | 20 |
Exd-GL-M36-SS | M36×2.0 | 36 | 14 | 42 | 20 |
Exd-GL-M40-SS | M40×1.5 | 40 | 15 | 45 | 20 |
Exd-GL-M42-SS | M42×2.0 | 42 | 15 | 45 | 20 |
Exd-GL-M48-SS | M48×2.0 | 48 | 15 | 55 | 20 |
Exd-GL-M50-SS | M50×1.5 | 50 | 15 | 55 | 20 |
Exd-GL-M60-SS | M60×2.0 | 60 | 15 | 65 | 10 |
Exd-GL-M63-SS | M63×1.5 | 63 | 15 | 68 | 10 |
产品参数表/NPT/G(PF)/PG
蓝江产品型号 | 螺纹规格 | 产品尺寸/Product size | 包装 | ||
Product model | Thread size | AG | GL | W | packing |
PN. | M/PG/G/NPT | φ mm | φ mm | φ mm | Pcs/bag |
Exd-GL-NPT1/4-SS | NPT1/4 | 13.5 | 10 | 14 | 100 |
Exd-GL-NPT3/8-SS | NPT3/8 | 16.65 | 10 | 22 | 100 |
Exd-GL-NPT1/2-SS | NPT1/2 | 20.95 | 14 | 24 | 100 |
Exd-GL-NPT3/4-SS | NPT3/4 | 26.44 | 14 | 30 | 50 |
Exd-GL-NPT1-SS | NPT1 | 33.24 | 15 | 38 | 50 |
Exd-GL-NPT1-1/4-SS | NPT1-1/4 | 41.91 | 15 | 46 | 20 |
Exd-GL-NPT1-1/2-SS | NPT1-1/2 | 47.8 | 15 | 55 | 20 |
Exd-GL-NPT2-SS | NPT2 | 59.61 | 15 | 65 | 10 |
Exe-GL-G1/4-SS | G1/4 | 13.5 | 10 | 14 | 100 |
Exe-GL-G3/8-SS | G3/8 | 16.65 | 10 | 22 | 100 |
Exe-GL-G1/2-SS | G1/2 | 20.95 | 14 | 24 | 100 |
Exe-GL-G3/4-SS | G3/4 | 26.44 | 14 | 30 | 50 |
Exe-GL-G1-SS | G1 | 33.24 | 15 | 38 | 50 |
Exe-GL-G1-1/4-SS | G1-1/4 | 41.91 | 15 | 46 | 20 |
Exe-GL-G1-1/2-SS | G1-1/2 | 47.8 | 15 | 50 | 20 |
Exe-GL-G2-SS | G2 | 59.61 | 15 | 65 | 10 |
Exe-GL-PG7-SS | PG7 | 12.5 | 10 | 14 | 100 |
Exe-GL-PG9-SS | PG9 | 15.2 | 10 | 18 | 100 |
Exe-GL-PG11-SS | PG11 | 16.8 | 11 | 22 | 100 |
Exe-GL-PG13.5-SS | PG13.5 | 20.4 | 12 | 24 | 50 |
Exe-GL-PG16-SS | PG16 | 22.5 | 12 | 26 | 50 |
Exe-GL-PG19-SS | PG19 | 23.5 | 12 | 28 | 50 |
Exe-GL-PG21-SS | PG21 | 28.3 | 14 | 32 | 50 |
Exe-GL-PG25-SS | PG25 | 29.8 | 14 | 34 | 50 |
Exe-GL-PG29-SS | PG29 | 37 | 14 | 42 | 50 |
Exe-GL-PG36-SS | PG36 | 47 | 15 | 55 | 20 |
Exe-GL-PG42-SS | PG42 | 54 | 15 | 60 | 20 |
Exe-GL-PG48-SS | PG48 | 59.8 | 15 | 65 | 10 |
