品牌：蓝江/LAND
材料：黄铜镀镍
防水：IP68
特性：外形美观，螺纹精密，内外丝结构设计，用于格兰螺纹相互转换
公制螺纹选型手册

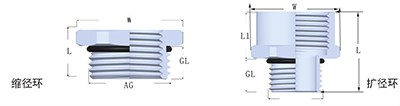

蓝江产品型号 | 螺纹规格/Thread size | 产品尺寸 / Product size | 包装 | ||||
Product model | 外螺纹 | 内螺纹 | AG | GL | L | W | packing |
PN. | M thread | F thread | φ mm | φ mm | mm | φ mm | Pcs/bag |
M12-M16 | M12×1.5 | M16×1.5 | 12 | 6 | 20 | 18 | 100 |
M12-M20 | M12×1.5 | M20×1.5 | 12 | 6 | 20 | 22 | 100 |
M16-M20 | M16×1.5 | M20×1.5 | 16 | 6 | 20 | 22 | 100 |
M16-M25 | M16×1.5 | M25×1.5 | 16 | 6 | 23 | 27 | 100 |
M16-G1/2 | M16×1.5 | G1/2 | 16 | 6 | 20 | 22 | 100 |
M18-M20 | M18×1.5 | M20×1.5 | 18 | 6.5 | 22 | 22 | 100 |
M20-M24 | M20×1.5 | M24×1.5 | 20 | 7 | 23 | 27 | 50 |
M20-M25 | M20×1.5 | M25×1.5 | 20 | 8 | 23 | 27 | 50 |
M20-M30 | M20×1.5 | M30×2.0 | 20 | 8 | 23 | 32 | 50 |
M20-M32 | M20×1.5 | M32×1.5 | 20 | 7 | 22 | 34 | 50 |
M20-NPT1/2 | M20×1.5 | NPT1/2 | 20 | 7 | 23 | 22 | 50 |
M20-PG13.5 | M20×1.5 | PG13.5 | 20 | 7 | 23 | 22 | 50 |
M24-M25 | M24×1.5 | M25×1.5 | 24 | 7 | 25 | 27 | 50 |
M24-M27 | M24×1.5 | M27×2.0 | 24 | 7 | 25 | 30 | 50 |
M24-M30 | M24×1.5 | M30×2.0 | 24 | 7 | 25 | 32 | 50 |
M27-M32 | M27×2.0 | M32×1.5 | 27 | 7 | 25 | 36 | 50 |
M25-M30 | M25×1.5 | M30×2.0 | 25 | 8 | 23 | 32 | 50 |
M25-M32 | M25×1.5 | M32×1.5 | 25 | 9 | 25 | 36 | 50 |
M25-M40 | M25×1.5 | M40×1.5 | 25 | 8 | 25 | 45 | 50 |
M27-M36 | M27×2.0 | M36×2.0 | 27 | 8 | 24 | 40 | 50 |
M32-M40 | M32×1.5 | M40×1.5 | 32 | 9 | 26 | 45 | 50 |
M32-M50 | M32×1.5 | M40×1.5 | 32 | 9 | 26 | 55 | 20 |
M36-M48 | M36×2.0 | M48×2.0 | 36 | 9 | 26 | 50 | 20 |
M40-M50 | M40×1.5 | M50×1.5 | 40 | 10 | 27 | 55 | 20 |
M40-M63 | M40×1.5 | M63×1.5 | 40 | 10 | 28 | 67 | 20 |
M48-M63 | M48×2.0 | M63×1.5 | 48 | 10 | 28 | 67 | 10 |
M50-M63 | M50×1.5 | M63×1.5 | 50 | 10 | 29 | 67 | 10 |
M63-M72 | M63×1.5 | M72×2.0 | 63 | 10 | 29 | 75 | 10 |
其他螺纹选型手册
蓝江产品型号 | 螺纹规格/Thread size | 产品尺寸 / Product size | 包装 | ||||
Product model | 外螺纹 | 内螺纹 | AG | GL | L | W | packing |
PN. | M thread | F thread | φ mm | φ mm | mm | φ mm | Pcs/bag |
PG7-PG9 | PG7 | PG9 | 12.5 | 6 | 19.5 | 18 | 50 |
PG9-PG11 | PG9 | PG11 | 15.2 | 7 | 21.5 | 22 | 50 |
PG9-PG13.5 | PG9 | PG13.5 | 15.2 | 7 | 21.5 | 22 | 50 |
PG9-PG16 | PG9 | PG16 | 15.2 | 7 | 23 | 24 | 50 |
PG11-PG13.5 | PG11 | PG13.5 | 18.6 | 7 | 22 | 22 | 50 |
PG11-PG16 | PG11 | PG16 | 18.6 | 7 | 22 | 25 | 50 |
PG13.5-PG16 | PG13.5 | PG16 | 20.5 | 8 | 23 | 24 | 50 |
PG16-PG21 | PG16 | PG21 | 22.5 | 8 | 23 | 30 | 50 |
PG16-PG29 | PG16 | PG29 | 22.5 | 8 | 23 | 40 | 50 |
PG21-PG29 | PG21 | PG29 | 28.3 | 8 | 25 | 40 | 50 |
PG29-PG36 | PG29 | PG36 | 37 | 10 | 27 | 50 | 20 |
PG36-PG42 | PG36 | PG42 | 47 | 10 | 29 | 60 | 20 |
PG42-PG48 | PG42 | PG48 | 54 | 11 | 31 | 65 | 10 |
G1/4-G3/8 | G1/4 | G3/8 | 13.15 | 7 | 21 | 20 | 10 |
G3/8-G1/2 | G3/8 | G1/2 | 16.66 | 7 | 21 | 24 | 50 |
G1/2-G3/4 | G1/2 | G3/4 | 20.95 | 7 | 21 | 30 | 50 |
G1/2-G1 | G1/2 | G1 | 20.95 | 7 | 21 | 36 | 50 |
G3/4-G1 | G3/4 | G1 | 26.44 | 7 | 21 | 36 | 50 |
G1-G1-1/4 | G1 | G1-1/4 | 33.24 | 9 | 24 | 45 | 50 |
G1-G1-1/2 | G1 | G1-1/2 | 33.24 | 9 | 26 | 55 | 50 |
G1-1/4-G1-1/2 | G1-1/4 | G1-1/2 | 41.91 | 9 | 26 | 55 | 50 |
G1-1/4-G2 | G1-1/4 | G2 | 41.91 | 10 | 28 | 65 | 50 |
G1-1/2-G2 | G1-1/2 | G2 | 47.8 | 10 | 28 | 65 | 50 |
NPT1/4-NPT3/8 | NPT1/4 | NPT3/8 | 13.15 | 7 | 21 | 20 | 10 |
NPT3/8-NPT1/2 | NPT3/8 | NPT1/2 | 16.66 | 7 | 21 | 24 | 50 |
NPT1/2-NPT3/4 | NPT1/2 | NPT3/4 | 20.95 | 7 | 21 | 30 | 50 |
NPT1/2-NPT1 | NPT1/2 | NPT1 | 20.95 | 7 | 21 | 36 | 50 |
NPT3/4-NPT1 | NPT3/4 | NPT1 | 26.44 | 7 | 21 | 36 | 50 |
NPT1-NPT1-1/4 | NPT1 | NPT1-1/4 | 33.24 | 9 | 24 | 45 | 50 |
NPT1-NPT1-1/2 | NPT1 | NPT1-1/2 | 33.24 | 9 | 26 | 55 | 50 |
NPT1-1/4-NPT1-1/2 | NPT1-1/4 | NPT1-1/2 | 41.91 | 9 | 26 | 55 | 50 |
NPT1-1/4-NPT2 | NPT1-1/4 | NPT2 | 41.91 | 10 | 28 | 65 | 50 |
NPT1-1/2-NPT2 | NPT1-1/2 | NPT2 | 47.8 | 10 | 28 | 65 | 50 |
