标准柔性机器人软管
品牌：蓝江WINLINK
材料：聚氨酯（PUR）
颜色：黑色、蓝色
认证：CE、ROHS
性能：高回弹性，耐折弯，耐摩擦，耐扭曲
应用：工业机器人，协作机器人，自动化设备
产品详情

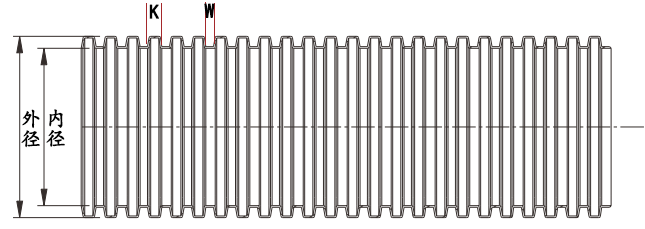

蓝江产品型号 | 内径×外径 | 节距 | 波段K/W | 壁厚 | 弯曲半径 | 整卷包装 | |
Product model | ID*OD | pitch | 公差±0.2mm | thick | Stat.r | Packing | |
PN. | mm | mm | K值 | W值 | mm | mm | M/ring |
WLK-RG-PUR-17B | 17×21.0 | 3.2 | 2.2 | 1 | 0.6 | 40 | 100 |
WLK-RG-PUR-20B | 20×25.0 | 4.4 | 3 | 1.4 | 0.7 | 40 | 50 |
WLK-RG-PUR-23B | 23×28.2 | 4.4 | 3 | 1.4 | 0.7 | 45 | 50 |
WLK-RG-PUR-28B | 28×34.2 | 6.3 | 4 | 2.3 | 0.8 | 55 | 50 |
WLK-RG-PUR-36B | 36×42.3 | 7 | 5.2 | 1.8 | 0.9 | 65 | 30 |
WLK-RG-PUR-48B | 48×54.0 | 7 | 5.2 | 1.8 | 0.9 | 80 | 30 |
WLK-RG-PUR-56B | 56×67.2 | 7 | 5 | 2 | 1.2 | 100 | 30 |
WLK-RG-PUR-70B | 70×80.0 | 8.5 | 5.5 | 3 | 1.2 | 120 | 30 |
WLK-RG-PUR-95B | 95×106 | 8.5 | 5.5 | 3 | 1.2 | 150 | 10 |
