品牌：蓝江/LAND
材料：黄铜镀镍
防水：IP68
特性：外形美观，螺纹精密，用于设备预留孔堵塞密封

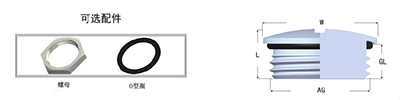

产品参数表/M
蓝江产品型号 | 螺纹规格 | 产品尺寸/Product size | 包装 | ||
Product model | Thread size | AG | GL | W | packing |
PN. | M/PG/G/NPT | φ mm | φ mm | φ mm | Pcs/bag |
GY-M10 | M10×1.5 | 10 | 5 | 12 | 100 |
GY-M12 | M12×1.5 | 12 | 5 | 14 | 100 |
GY-M16 | M16×1.5 | 16 | 6 | 18 | 100 |
GY-M18 | M18×1.5 | 18 | 6 | 21 | 100 |
GY-M20 | M20×1.5 | 20 | 7 | 23 | 100 |
GY-M22 | M22×1.5 | 22 | 7 | 25 | 100 |
GY-M24 | M24×1.5 | 24 | 7 | 28 | 100 |
GY-M25 | M25×1.5 | 25 | 7 | 28 | 50 |
GY-M27 | M27×1.5 | 27 | 7 | 29.5 | 50 |
GY-M30 | M30×2.0 | 30 | 7 | 32.5 | 50 |
GY-M32 | M32×1.5 | 32 | 7 | 35 | 50 |
GY-M33 | M33×2.0 | 33 | 8 | 36 | 50 |
GY-M36 | M36×1.5 | 36 | 8 | 38.5 | 50 |
GY-M40 | M40×1.5 | 40 | 9 | 44 | 20 |
GY-M42 | M42×2.0 | 42 | 9 | 46 | 20 |
GY-M48 | M48×2.0 | 48 | 10 | 52 | 20 |
GY-M50 | M50×1.5 | 50 | 10 | 54 | 10 |
GY-M63 | M63×1.5 | 63 | 10 | 67 | 10 |
GY-M64 | M64×2.0 | 64 | 10 | 68 | 10 |
产品参数表/NPT/G(PF)/PG
蓝江产品型号 | 螺纹规格 | 产品尺寸/Product size | 包装 | ||
Product model | Thread size | AG | GY | W | packing |
PN. | M/PG/G/NPT | φ mm | φ mm | φ mm | Pcs/bag |
GY-PG7 | PG7 | 12.5 | 5 | 14 | 100 |
GY-PG9 | PG9 | 15.2 | 6 | 17 | 100 |
GY-PG11 | PG11 | 16.8 | 6 | 21 | 100 |
GY-PG13.5 | PG13.5 | 20.4 | 7 | 23 | 50 |
GY-PG16 | PG16 | 22.5 | 7 | 25 | 50 |
GY-PG21 | PG21 | 28.3 | 7 | 31 | 50 |
GY-PG29 | PG29 | 37 | 8 | 40 | 50 |
GY-PG36 | PG36 | 47 | 9 | 50 | 20 |
GY-PG42 | PG42 | 54 | 10 | 57 | 20 |
GY-PG48 | PG48 | 59.8 | 10 | 67 | 10 |
GY-G1/4 | G1/4 | 13.5 | 11 | 17 | 100 |
GY-G3/8 | G3/8 | 16.65 | 12 | 18 | 100 |
GY-G1/2 | G1/2 | 20.95 | 12 | 23 | 100 |
GY-G3/4 | G3/4 | 26.44 | 14 | 31 | 50 |
GY-G1 | G1 | 33.24 | 15 | 35 | 50 |
GY-G1-1/4 | G1-1/4 | 41.91 | 15 | 44 | 20 |
GY-G1-1/2 | G1-1/2 | 47.8 | 16 | 52 | 20 |
GY-G2 | G2 | 59.61 | 18 | 67 | 10 |
GY-NPT1/4 | NPT1/4 | 13.5 | 11 | 14 | 100 |
GY-NPT3/8 | NPT3/8 | 16.65 | 12 | 22 | 100 |
GY-NPT1/2 | NPT1/2 | 20.95 | 12 | 24 | 100 |
GY-NPT3/4 | NPT3/4 | 26.44 | 14 | 30 | 50 |
GY-NPT1 | NPT1 | 33.24 | 15 | 38 | 50 |
GY-NPT1-1/4 | NPT1-1/4 | 41.91 | 15 | 46 | 20 |
GY-NPT1-1/2 | NPT1-1/2 | 47.8 | 16 | 50 | 20 |
GY-NPT2 | NPT2 | 59.61 | 18 | 65 | 10 |
