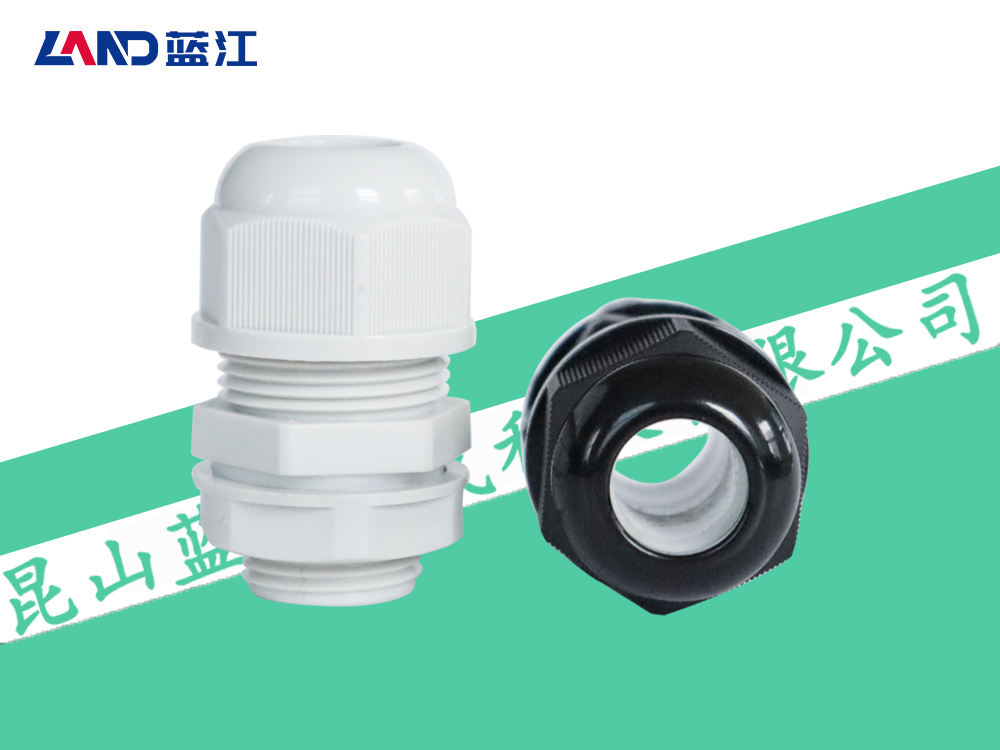

品牌：蓝江/LAND
材料：外部尼龙，密封件改性橡胶
颜色：黑色（RAL9005），灰白色（RAL7035）
防水：IP66/IP68
阻燃：UL94V-2
环保：ROHS2.0
温度：-20°C～150°C，短时可达180°C
性能：外形美观，密封件采用改性硅橡胶制成，具备高温下正常工作且保持密封性
蓝江产品型号 | 螺纹规格 | 电缆范围 | 建议开孔 | 螺纹长度 | 扳手尺寸 | 整袋包装 |
Product model | Thread size | Cable range | Hole size | Thread length | Wrench Size | packaging |
PN. | Metric | φ mm | φ mm | GL mm | nut/cap mm | PCS |
MG12A-08-HT | M12×1.5 | 4～8 | 12 | 8.5 | 18/19 | 50 |
MG16AS-08-HT | M16×1.5 | 4～8 | 16 | 10 | 22/19 | 50 |
MG16A-10-HT | M16×1.5 | 6～10 | 16 | 15 | 22/22 | 50 |
MG20A-14-HT | M20×1.5 | 8～14 | 20 | 15 | 27/27 | 50 |
MG20A-12-HT | M20×1.5 | 6～12 | 20 | 10 | 27/27 | 50 |
MG22A-14-HT | M22×1.5 | 8～14 | 22 | 10 | 29/27 | 50 |
MG25AS-14-HT | M25×1.5 | 8～14 | 25 | 10 | 33/27 | 50 |
MG25A-18-HT | M25×1.5 | 13～18 | 25 | 15 | 33/33 | 50 |
MG25A-16-HT | M25×1.5 | 10～16 | 25 | 15 | 33/33 | 50 |
MG32A-25-HT | M32×1.5 | 18～25 | 32 | 15 | 41/41 | 20 |
MG32A-22-HT | M32×1.5 | 16～22 | 32 | 15 | 41/41 | 20 |
MG40A-32-HT | M40×1.5 | 24～32 | 40 | 20 | 50/50 | 10 |
MG50A-41-HT | M50×1.5 | 31～41 | 50 | 22 | 62/62 | 10 |
MG63A-51-HT | M63×1.5 | 44～51 | 63 | 25 | 75/78 | 10 |
PG7A-08-HT | PG7 | 4～8 | 12.5 | 8.5 | 17/19 | 50 |
PG9A-08-HT | PG9 | 4～8 | 15.2 | 8.5 | 22/19 | 50 |
PG11A-10-HT | PG11 | 6～10 | 18.6 | 10 | 22/22 | 50 |
PG13.5A-12-HT | PG13.5 | 6～12 | 20.4 | 10 | 27/24 | 50 |
PG16A-14-HT | PG16 | 8～14 | 22.5 | 11 | 30/27 | 50 |
PG21A-18-HT | PG21 | 13～18 | 28.3 | 12 | 36/33 | 50 |
PG29A-25-HT | PG29 | 18～25 | 37 | 12 | 46/41 | 20 |
PG36A-31-HT | PG36 | 24～31 | 47 | 15 | 57/50 | 10 |
PG42A-41-HT | PG42 | 31～41 | 54 | 15.5 | 64/62 | 10 |
PG48A-51-HT | PG48 | 44～51 | 59.3 | 16 | 75/78 | 10 |
G1/4A-08-HT | G1/4 | 4～8 | 13.15 | 8.5 | 19/19 | 50 |
G3/8A-10-HT | G3/8 | 6～10 | 16.66 | 15 | 22/22 | 50 |
G1/2A-12-HT | G1/2 | 6～12 | 20.95 | 10 | 27/24 | 50 |
G1/2AL-14-HT | G1/2 | 8～14 | 20.95 | 15 | 30/27 | 50 |
G3/4A-18-HT | G3/4 | 13～18 | 26.44 | 15 | 33/33 | 50 |
G3/4A-16-HT | G3/4 | 10～16 | 26.44 | 15 | 33/33 | 50 |
G1A-25-HT | G1 | 18～25 | 33.2 | 15 | 42/41 | 20 |
G1-1/4A-31-HT | G1-1/4 | 24～31 | 41.9 | 16 | 51/50 | 10 |
G1-1/2A-41-HT | G1-1/2 | 31～41 | 47.8 | 22 | 62/62 | 10 |
G2A-51-HT | G2 | 44～51 | 59.6 | 25 | 75/75 | 10 |
