·防爆挠性管由活接头与连接管组成，连接管由内管和外护套组成
·活接头由不锈钢或者碳钢电镀处理制成
·内管由波纹管或金属软管制成，具有良好的耐腐蚀性
·具有阻燃、耐腐蚀、耐水、耐老化、挠性良好、结构牢固、工作可靠等特点
·可定制螺纹，可定制长度，常规供货有500mm、700mm、1000mm，三种材质可选

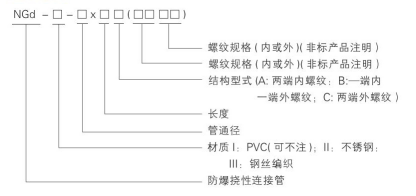

规格型号 | 接头螺纹 | 管通径 | 长度L(mm) | 最小弯曲半径 | ||||
M | NPT | G | I型 | II型 | III型 | 单根长度 | ||
NGD-□-DN15-500□ | M20×1.5 | 1/2" | 1/2" | 13 | 14 | 14 | 500 | 80 |
NGD-□-DN15-700□ | M20×1.5 | 1/2" | 1/2" | 13 | 14 | 14 | 700 | 80 |
NGD-□-DN15-1000□ | M20×1.5 | 1/2" | 1/2" | 13 | 14 | 14 | 1000 | 80 |
NGD-□-DN20-500□ | M25×1.5 | 3/4" | 3/4" | 19 | 17 | 17 | 500 | 110 |
NGD-□-DN20-700□ | M25×1.5 | 3/4" | 3/4" | 19 | 17 | 17 | 700 | 110 |
NGD-□-DN20-1000□ | M25×1.5 | 3/4" | 3/4" | 19 | 17 | 17 | 1000 | 110 |
NGD-□-DN25-500□ | M32×1.5 | 1" | 1" | 23 | 23 | 23 | 500 | 145 |
NGD-□-DN25-700□ | M32×1.5 | 1" | 1" | 23 | 23 | 23 | 700 | 145 |
NGD-□-DN25-1000□ | M32×1.5 | 1" | 1" | 23 | 23 | 23 | 1000 | 145 |
NGD-□-DN32-500□ | M40×1.5 | 1/1/4" | 1/1/4" | 28 | 30 | 30 | 500 | 180 |
NGD-□-DN32-700□ | M40×1.5 | 1/1/4" | 1/1/4" | 28 | 30 | 30 | 700 | 180 |
NGD-□-DN32-1000□ | M40×1.5 | 1/1/4" | 1/1/4" | 28 | 30 | 30 | 1000 | 180 |
NGD-□-DN40-500□ | M50×1.5 | 1/1/2" | 1/1/2" | 32 | 35 | 35 | 500 | 210 |
NGD-□-DN40-700□ | M50×1.5 | 1/1/2" | 1/1/2" | 32 | 35 | 35 | 700 | 210 |
NGD-□-DN40-1000□ | M50×1.5 | 1/1/2" | 1/1/2" | 32 | 35 | 35 | 1000 | 210 |
NGD-□-DN50-500□ | M63×1.5 | 2" | 2" | 40 | 47 | 47 | 500 | 250 |
NGD-□-DN50-700□ | M63×1.5 | 2" | 2" | 40 | 47 | 47 | 700 | 250 |
NGD-□-DN50-1000□ | M63×1.5 | 2" | 2" | 40 | 47 | 47 | 1000 | 250 |
NGD-□-DN65-700□ | M75×1.5 | 2/1/2" | 2/1/2" | - | 59 | 59 | 700 | 350 |
NGD-□-DN65-1000□ | M75×1.5 | 2/1/2" | 2/1/2" | - | 59 | 59 | 1000 | 350 |
NGD-□-DN80-700□ | M90×2 | 3" | 3" | - | 72 | 72 | 700 | 400 |
NGD-□-DN80-1000□ | M90×2 | 3" | 3" | - | 72 | 72 | 1000 | 400 |
NGD-□-DN100-700□ | M115×2 | 4" | 4" | - | 97 | 97 | 700 | 500 |
NGD-□-DN100-1000□ | M115×2 | 4" | 4" | - | 97 | 97 | 1000 | 500 |
